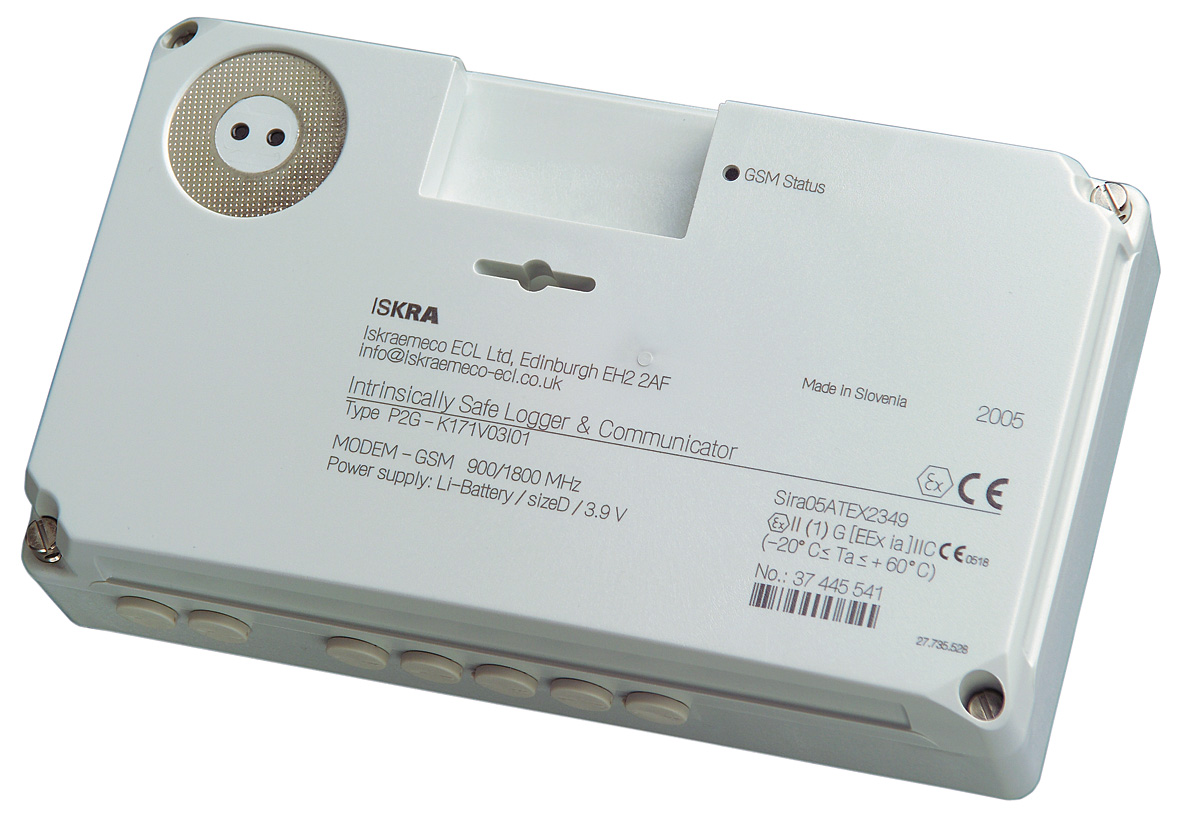

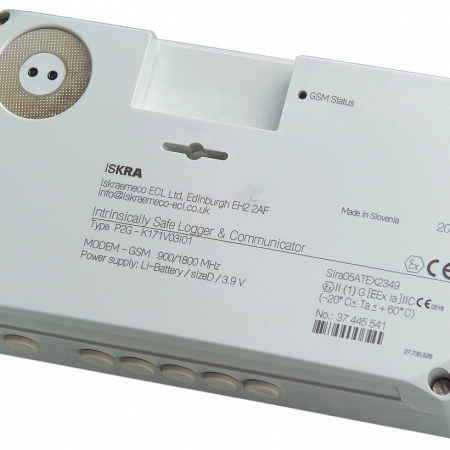

ISKRA P2G Gas Data Logger

£195.00

The P2G Data Logger and GSM communicator has two input channels for logging pulses from up to two metering points.

Features

integral GSM modem for SMS services
long battery life, Tadiran batteries
Zone ZERO- ATEX approved logger
not tied in to a data reading contract
used for gas, electric, water, heat or other pulse devices
optical port for on-site data reading and programming

Product Description

The P2G Data Logger and GSM communicator has two input channels for logging pulses from up to two metering points. Separate tamper detection channels for use with gas metering can trigger an SMS message alerting when a gas meter has been interfered with. The P2G is an intrinsically safe Sira ATEX approved device for situating in potentially explosive Zone 0 environments. The long-life battery allows for 5 years endurance assuming standard data delivery configuration. The P2G also has a temperature recording channel for monitoring ambient temperature. Remote reading by Sentinel software online.

P2G-Installation-Guidelines_SMS

P2G-Datasheet_SMS

P2G_P2W_Configuration-Instructions_SMS

P2G-changing-battery-v1.0_SMS
